1. Basic Structure and Architectural Characteristics of Quartz Ceramics
1.1 Chemical Pureness and Crystalline-to-Amorphous Change

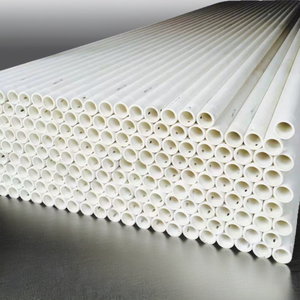

(Quartz Ceramics)
Quartz porcelains, likewise called merged silica or merged quartz, are a course of high-performance not natural materials derived from silicon dioxide (SiO TWO) in its ultra-pure, non-crystalline (amorphous) kind.
Unlike standard ceramics that count on polycrystalline structures, quartz ceramics are identified by their full absence of grain boundaries due to their lustrous, isotropic network of SiO ₄ tetrahedra adjoined in a three-dimensional random network.
This amorphous structure is accomplished with high-temperature melting of all-natural quartz crystals or artificial silica precursors, followed by quick air conditioning to prevent condensation.
The resulting product contains typically over 99.9% SiO ₂, with trace impurities such as alkali metals (Na ⁺, K ⁺), light weight aluminum, and iron maintained parts-per-million degrees to maintain optical quality, electric resistivity, and thermal efficiency.
The lack of long-range order gets rid of anisotropic actions, making quartz porcelains dimensionally secure and mechanically uniform in all directions– a vital advantage in precision applications.
1.2 Thermal Actions and Resistance to Thermal Shock
Among the most specifying functions of quartz porcelains is their remarkably reduced coefficient of thermal growth (CTE), commonly around 0.55 × 10 ⁻⁶/ K between 20 ° C and 300 ° C.
This near-zero expansion develops from the flexible Si– O– Si bond angles in the amorphous network, which can readjust under thermal stress without damaging, permitting the product to stand up to quick temperature changes that would certainly crack traditional ceramics or steels.
Quartz ceramics can sustain thermal shocks exceeding 1000 ° C, such as direct immersion in water after heating to red-hot temperatures, without breaking or spalling.
This residential property makes them essential in settings involving repeated heating and cooling down cycles, such as semiconductor processing heating systems, aerospace components, and high-intensity lighting systems.
Additionally, quartz ceramics keep architectural integrity up to temperature levels of approximately 1100 ° C in constant solution, with short-term direct exposure tolerance approaching 1600 ° C in inert atmospheres.
( Quartz Ceramics)
Past thermal shock resistance, they show high softening temperature levels (~ 1600 ° C )and excellent resistance to devitrification– though long term direct exposure above 1200 ° C can initiate surface area crystallization right into cristobalite, which may endanger mechanical stamina due to volume adjustments during phase shifts.
2. Optical, Electric, and Chemical Residences of Fused Silica Equipment
2.1 Broadband Transparency and Photonic Applications
Quartz ceramics are renowned for their exceptional optical transmission across a wide spooky range, prolonging from the deep ultraviolet (UV) at ~ 180 nm to the near-infrared (IR) at ~ 2500 nm.
This openness is enabled by the absence of impurities and the homogeneity of the amorphous network, which lessens light scattering and absorption.
High-purity artificial fused silica, created through fire hydrolysis of silicon chlorides, accomplishes even higher UV transmission and is utilized in essential applications such as excimer laser optics, photolithography lenses, and space-based telescopes.
The material’s high laser damage threshold– withstanding malfunction under extreme pulsed laser irradiation– makes it perfect for high-energy laser systems used in blend research study and industrial machining.
Furthermore, its low autofluorescence and radiation resistance make certain dependability in clinical instrumentation, including spectrometers, UV healing systems, and nuclear monitoring tools.
2.2 Dielectric Efficiency and Chemical Inertness
From an electrical point ofview, quartz ceramics are exceptional insulators with volume resistivity surpassing 10 ¹⁸ Ω · cm at area temperature and a dielectric constant of roughly 3.8 at 1 MHz.
Their low dielectric loss tangent (tan δ < 0.0001) makes sure very little energy dissipation in high-frequency and high-voltage applications, making them appropriate for microwave home windows, radar domes, and protecting substrates in digital settings up.
These properties remain steady over a wide temperature level variety, unlike many polymers or traditional ceramics that degrade electrically under thermal stress.
Chemically, quartz ceramics display amazing inertness to most acids, consisting of hydrochloric, nitric, and sulfuric acids, as a result of the security of the Si– O bond.
Nonetheless, they are vulnerable to assault by hydrofluoric acid (HF) and solid alkalis such as warm salt hydroxide, which break the Si– O– Si network.
This selective reactivity is manipulated in microfabrication procedures where regulated etching of merged silica is required.
In aggressive industrial settings– such as chemical handling, semiconductor damp benches, and high-purity liquid handling– quartz ceramics act as linings, view glasses, and reactor parts where contamination need to be decreased.
3. Manufacturing Processes and Geometric Design of Quartz Porcelain Parts
3.1 Thawing and Creating Methods
The manufacturing of quartz ceramics involves a number of specialized melting approaches, each tailored to specific pureness and application demands.
Electric arc melting utilizes high-purity quartz sand thawed in a water-cooled copper crucible under vacuum cleaner or inert gas, generating big boules or tubes with superb thermal and mechanical residential or commercial properties.
Fire fusion, or burning synthesis, entails melting silicon tetrachloride (SiCl ₄) in a hydrogen-oxygen flame, depositing great silica fragments that sinter into a clear preform– this approach produces the greatest optical top quality and is utilized for synthetic integrated silica.
Plasma melting supplies an alternative course, offering ultra-high temperature levels and contamination-free handling for specific niche aerospace and defense applications.
As soon as melted, quartz ceramics can be formed with precision spreading, centrifugal forming (for tubes), or CNC machining of pre-sintered spaces.
As a result of their brittleness, machining needs diamond tools and mindful control to stay clear of microcracking.
3.2 Precision Manufacture and Surface Area Finishing
Quartz ceramic components are frequently fabricated right into complicated geometries such as crucibles, tubes, poles, windows, and custom insulators for semiconductor, photovoltaic or pv, and laser industries.
Dimensional accuracy is crucial, particularly in semiconductor production where quartz susceptors and bell jars need to preserve exact alignment and thermal harmony.
Surface area completing plays a vital duty in performance; sleek surfaces lower light scattering in optical components and lessen nucleation websites for devitrification in high-temperature applications.
Engraving with buffered HF solutions can generate regulated surface structures or remove harmed layers after machining.
For ultra-high vacuum (UHV) systems, quartz porcelains are cleansed and baked to get rid of surface-adsorbed gases, guaranteeing minimal outgassing and compatibility with sensitive processes like molecular light beam epitaxy (MBE).
4. Industrial and Scientific Applications of Quartz Ceramics
4.1 Role in Semiconductor and Photovoltaic Production
Quartz porcelains are foundational materials in the manufacture of incorporated circuits and solar batteries, where they act as heater tubes, wafer watercrafts (susceptors), and diffusion chambers.
Their capability to stand up to high temperatures in oxidizing, decreasing, or inert environments– integrated with low metallic contamination– ensures procedure purity and yield.
Throughout chemical vapor deposition (CVD) or thermal oxidation, quartz parts maintain dimensional stability and resist bending, protecting against wafer damage and misalignment.
In photovoltaic or pv production, quartz crucibles are used to expand monocrystalline silicon ingots by means of the Czochralski procedure, where their purity directly influences the electric high quality of the last solar cells.
4.2 Usage in Illumination, Aerospace, and Analytical Instrumentation
In high-intensity discharge (HID) lights and UV sterilization systems, quartz ceramic envelopes contain plasma arcs at temperature levels going beyond 1000 ° C while transmitting UV and noticeable light efficiently.
Their thermal shock resistance stops failing throughout fast lamp ignition and shutdown cycles.
In aerospace, quartz porcelains are used in radar windows, sensing unit real estates, and thermal protection systems due to their reduced dielectric consistent, high strength-to-density ratio, and stability under aerothermal loading.
In logical chemistry and life scientific researches, merged silica capillaries are necessary in gas chromatography (GC) and capillary electrophoresis (CE), where surface inertness stops example adsorption and guarantees exact separation.
Furthermore, quartz crystal microbalances (QCMs), which depend on the piezoelectric homes of crystalline quartz (distinct from merged silica), utilize quartz porcelains as safety real estates and protecting assistances in real-time mass sensing applications.
Finally, quartz ceramics represent an unique intersection of severe thermal durability, optical transparency, and chemical purity.
Their amorphous framework and high SiO ₂ web content allow efficiency in environments where traditional materials stop working, from the heart of semiconductor fabs to the side of space.
As modern technology advances toward higher temperature levels, greater accuracy, and cleaner procedures, quartz ceramics will remain to work as a crucial enabler of development throughout science and sector.
