1. Material Properties and Structural Honesty
1.1 Innate Attributes of Silicon Carbide

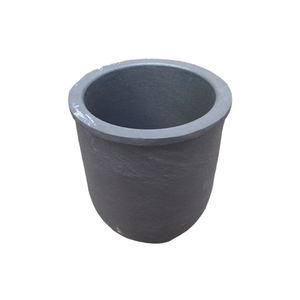

(Silicon Carbide Crucibles)
Silicon carbide (SiC) is a covalent ceramic substance made up of silicon and carbon atoms set up in a tetrahedral latticework framework, primarily existing in over 250 polytypic kinds, with 6H, 4H, and 3C being the most technologically relevant.
Its solid directional bonding conveys outstanding solidity (Mohs ~ 9.5), high thermal conductivity (80– 120 W/(m · K )for pure single crystals), and superior chemical inertness, making it one of the most durable products for extreme environments.
The wide bandgap (2.9– 3.3 eV) makes sure exceptional electrical insulation at room temperature and high resistance to radiation damage, while its low thermal expansion coefficient (~ 4.0 × 10 ⁻⁶/ K) contributes to premium thermal shock resistance.
These intrinsic residential or commercial properties are preserved also at temperatures exceeding 1600 ° C, permitting SiC to preserve structural integrity under extended direct exposure to thaw metals, slags, and responsive gases.
Unlike oxide porcelains such as alumina, SiC does not react conveniently with carbon or type low-melting eutectics in minimizing environments, a crucial benefit in metallurgical and semiconductor handling.
When made into crucibles– vessels created to contain and warmth materials– SiC exceeds traditional products like quartz, graphite, and alumina in both life-span and process reliability.
1.2 Microstructure and Mechanical Stability
The efficiency of SiC crucibles is very closely connected to their microstructure, which depends upon the production technique and sintering additives utilized.
Refractory-grade crucibles are typically produced through response bonding, where porous carbon preforms are infiltrated with liquified silicon, developing β-SiC via the reaction Si(l) + C(s) → SiC(s).
This process generates a composite structure of key SiC with recurring free silicon (5– 10%), which improves thermal conductivity however might restrict use over 1414 ° C(the melting point of silicon).
Conversely, completely sintered SiC crucibles are made via solid-state or liquid-phase sintering making use of boron and carbon or alumina-yttria ingredients, achieving near-theoretical thickness and higher pureness.
These display superior creep resistance and oxidation stability yet are much more expensive and difficult to produce in large sizes.
( Silicon Carbide Crucibles)
The fine-grained, interlocking microstructure of sintered SiC gives exceptional resistance to thermal tiredness and mechanical erosion, critical when dealing with liquified silicon, germanium, or III-V compounds in crystal development processes.
Grain limit design, including the control of second stages and porosity, plays an essential role in establishing long-term durability under cyclic home heating and aggressive chemical atmospheres.
2. Thermal Efficiency and Environmental Resistance
2.1 Thermal Conductivity and Warmth Circulation
One of the specifying benefits of SiC crucibles is their high thermal conductivity, which makes it possible for quick and uniform warm transfer during high-temperature handling.
In comparison to low-conductivity materials like merged silica (1– 2 W/(m · K)), SiC successfully disperses thermal power throughout the crucible wall, minimizing localized hot spots and thermal gradients.
This harmony is crucial in procedures such as directional solidification of multicrystalline silicon for photovoltaics, where temperature level homogeneity directly affects crystal high quality and flaw thickness.
The mix of high conductivity and reduced thermal development causes an exceptionally high thermal shock parameter (R = k(1 − ν)α/ σ), making SiC crucibles resistant to splitting throughout rapid heating or cooling cycles.
This enables faster heater ramp rates, improved throughput, and decreased downtime as a result of crucible failing.
In addition, the material’s ability to stand up to repeated thermal biking without significant degradation makes it ideal for batch handling in commercial heating systems running over 1500 ° C.
2.2 Oxidation and Chemical Compatibility
At elevated temperature levels in air, SiC goes through passive oxidation, developing a safety layer of amorphous silica (SiO ₂) on its surface area: SiC + 3/2 O TWO → SiO ₂ + CO.
This glazed layer densifies at high temperatures, serving as a diffusion barrier that reduces additional oxidation and preserves the underlying ceramic structure.
However, in minimizing atmospheres or vacuum problems– typical in semiconductor and metal refining– oxidation is suppressed, and SiC stays chemically steady versus liquified silicon, light weight aluminum, and numerous slags.
It stands up to dissolution and response with molten silicon as much as 1410 ° C, although extended direct exposure can cause mild carbon pick-up or user interface roughening.
Crucially, SiC does not introduce metallic contaminations into sensitive melts, a vital need for electronic-grade silicon production where contamination by Fe, Cu, or Cr should be maintained listed below ppb degrees.
Nonetheless, care has to be taken when processing alkaline earth metals or highly responsive oxides, as some can corrode SiC at extreme temperatures.
3. Production Processes and Quality Assurance
3.1 Fabrication Techniques and Dimensional Control
The manufacturing of SiC crucibles includes shaping, drying out, and high-temperature sintering or infiltration, with techniques chosen based upon called for pureness, dimension, and application.
Common forming strategies include isostatic pushing, extrusion, and slide spreading, each using different degrees of dimensional accuracy and microstructural harmony.
For big crucibles made use of in solar ingot spreading, isostatic pressing guarantees regular wall surface thickness and thickness, decreasing the danger of crooked thermal development and failure.
Reaction-bonded SiC (RBSC) crucibles are economical and extensively made use of in factories and solar industries, though recurring silicon limits optimal service temperature.
Sintered SiC (SSiC) variations, while much more expensive, offer premium pureness, toughness, and resistance to chemical strike, making them suitable for high-value applications like GaAs or InP crystal growth.
Precision machining after sintering may be called for to accomplish limited resistances, especially for crucibles used in vertical slope freeze (VGF) or Czochralski (CZ) systems.
Surface ending up is critical to lessen nucleation websites for issues and make sure smooth melt circulation during spreading.
3.2 Quality Assurance and Efficiency Recognition
Extensive quality control is important to make sure integrity and durability of SiC crucibles under demanding functional conditions.
Non-destructive analysis strategies such as ultrasonic testing and X-ray tomography are employed to find inner splits, spaces, or thickness variations.
Chemical evaluation using XRF or ICP-MS validates reduced degrees of metal contaminations, while thermal conductivity and flexural stamina are determined to verify material consistency.
Crucibles are often based on simulated thermal cycling examinations prior to shipment to identify potential failure settings.
Batch traceability and certification are standard in semiconductor and aerospace supply chains, where component failure can lead to costly manufacturing losses.
4. Applications and Technical Influence
4.1 Semiconductor and Photovoltaic Industries
Silicon carbide crucibles play a critical duty in the production of high-purity silicon for both microelectronics and solar cells.
In directional solidification heating systems for multicrystalline photovoltaic ingots, large SiC crucibles serve as the primary container for liquified silicon, withstanding temperatures above 1500 ° C for numerous cycles.
Their chemical inertness avoids contamination, while their thermal security makes sure consistent solidification fronts, bring about higher-quality wafers with less misplacements and grain borders.
Some manufacturers layer the internal surface with silicon nitride or silica to further lower adhesion and help with ingot release after cooling.
In research-scale Czochralski growth of compound semiconductors, smaller sized SiC crucibles are used to hold melts of GaAs, InSb, or CdTe, where minimal reactivity and dimensional security are vital.
4.2 Metallurgy, Factory, and Arising Technologies
Past semiconductors, SiC crucibles are indispensable in metal refining, alloy preparation, and laboratory-scale melting procedures involving aluminum, copper, and rare-earth elements.
Their resistance to thermal shock and erosion makes them excellent for induction and resistance furnaces in foundries, where they outlast graphite and alumina alternatives by several cycles.
In additive production of reactive steels, SiC containers are utilized in vacuum induction melting to avoid crucible break down and contamination.
Emerging applications include molten salt activators and focused solar power systems, where SiC vessels may consist of high-temperature salts or fluid steels for thermal energy storage.
With ongoing advances in sintering modern technology and coating design, SiC crucibles are poised to support next-generation products handling, making it possible for cleaner, more efficient, and scalable commercial thermal systems.
In summary, silicon carbide crucibles stand for a crucial making it possible for modern technology in high-temperature material synthesis, incorporating phenomenal thermal, mechanical, and chemical performance in a single engineered element.
Their widespread adoption across semiconductor, solar, and metallurgical sectors highlights their role as a cornerstone of modern-day commercial porcelains.
