1. Material Structures and Synergistic Layout
1.1 Intrinsic Characteristics of Component Phases

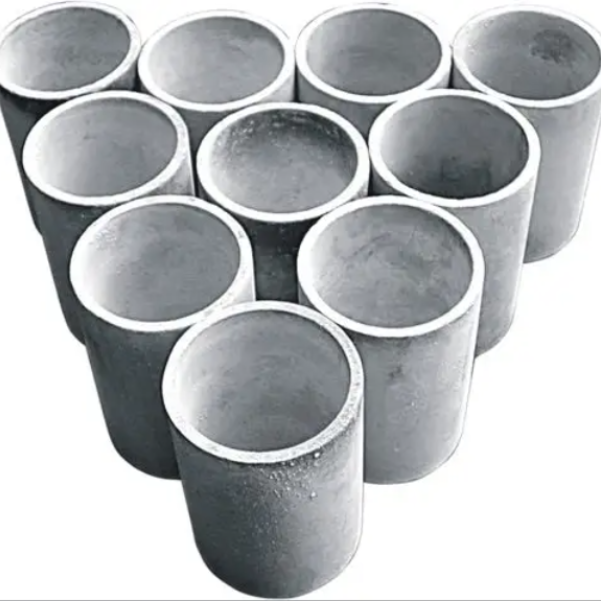

(Silicon nitride and silicon carbide composite ceramic)
Silicon nitride (Si three N FOUR) and silicon carbide (SiC) are both covalently bound, non-oxide porcelains renowned for their extraordinary efficiency in high-temperature, harsh, and mechanically demanding environments.
Silicon nitride exhibits superior crack strength, thermal shock resistance, and creep security as a result of its special microstructure composed of lengthened β-Si three N ₄ grains that make it possible for fracture deflection and linking systems.
It maintains toughness approximately 1400 ° C and possesses a relatively reduced thermal development coefficient (~ 3.2 × 10 ⁻⁶/ K), reducing thermal stress and anxieties throughout quick temperature level changes.
On the other hand, silicon carbide uses premium solidity, thermal conductivity (up to 120– 150 W/(m · K )for solitary crystals), oxidation resistance, and chemical inertness, making it optimal for unpleasant and radiative heat dissipation applications.
Its wide bandgap (~ 3.3 eV for 4H-SiC) additionally gives outstanding electrical insulation and radiation tolerance, valuable in nuclear and semiconductor contexts.
When combined right into a composite, these materials display corresponding behaviors: Si ₃ N ₄ improves sturdiness and damages resistance, while SiC improves thermal administration and wear resistance.
The resulting hybrid ceramic attains an equilibrium unattainable by either phase alone, developing a high-performance architectural material customized for severe solution problems.
1.2 Composite Design and Microstructural Engineering
The layout of Si six N ₄– SiC compounds involves accurate control over stage circulation, grain morphology, and interfacial bonding to maximize collaborating results.
Commonly, SiC is presented as fine particulate reinforcement (ranging from submicron to 1 µm) within a Si ₃ N ₄ matrix, although functionally rated or layered styles are additionally checked out for specialized applications.
Throughout sintering– typically via gas-pressure sintering (GENERAL PRACTITIONER) or hot pushing– SiC bits affect the nucleation and growth kinetics of β-Si five N four grains, commonly promoting finer and more consistently oriented microstructures.
This improvement boosts mechanical homogeneity and decreases imperfection size, contributing to improved stamina and dependability.
Interfacial compatibility in between both phases is crucial; due to the fact that both are covalent porcelains with comparable crystallographic symmetry and thermal expansion actions, they develop coherent or semi-coherent limits that withstand debonding under lots.
Ingredients such as yttria (Y ₂ O THREE) and alumina (Al ₂ O FIVE) are made use of as sintering help to promote liquid-phase densification of Si ₃ N four without jeopardizing the security of SiC.
However, too much secondary phases can weaken high-temperature performance, so composition and processing need to be enhanced to reduce glazed grain limit movies.
2. Processing Methods and Densification Obstacles

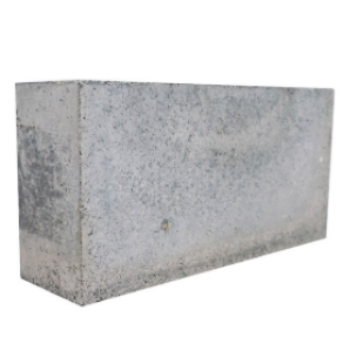

( Silicon nitride and silicon carbide composite ceramic)
2.1 Powder Prep Work and Shaping Techniques
Top Quality Si ₃ N ₄– SiC compounds start with homogeneous blending of ultrafine, high-purity powders utilizing damp ball milling, attrition milling, or ultrasonic diffusion in organic or aqueous media.
Accomplishing uniform dispersion is critical to prevent agglomeration of SiC, which can act as tension concentrators and lower crack sturdiness.
Binders and dispersants are included in support suspensions for forming techniques such as slip spreading, tape casting, or shot molding, depending on the wanted part geometry.
Eco-friendly bodies are then meticulously dried out and debound to eliminate organics prior to sintering, a procedure requiring regulated home heating prices to prevent cracking or deforming.
For near-net-shape production, additive techniques like binder jetting or stereolithography are arising, allowing complex geometries formerly unattainable with standard ceramic handling.
These approaches need tailored feedstocks with maximized rheology and eco-friendly strength, typically involving polymer-derived porcelains or photosensitive resins packed with composite powders.
2.2 Sintering Devices and Stage Stability
Densification of Si Six N FOUR– SiC composites is testing because of the solid covalent bonding and restricted self-diffusion of nitrogen and carbon at practical temperatures.
Liquid-phase sintering utilizing rare-earth or alkaline planet oxides (e.g., Y ₂ O THREE, MgO) lowers the eutectic temperature and boosts mass transportation through a short-term silicate melt.
Under gas stress (usually 1– 10 MPa N TWO), this melt facilitates rearrangement, solution-precipitation, and final densification while reducing disintegration of Si four N ₄.
The visibility of SiC influences viscosity and wettability of the liquid phase, possibly altering grain growth anisotropy and final appearance.
Post-sintering warm treatments might be applied to take shape recurring amorphous stages at grain boundaries, boosting high-temperature mechanical homes and oxidation resistance.
X-ray diffraction (XRD) and scanning electron microscopy (SEM) are consistently used to verify phase pureness, lack of unfavorable secondary stages (e.g., Si two N ₂ O), and consistent microstructure.
3. Mechanical and Thermal Efficiency Under Load
3.1 Strength, Sturdiness, and Tiredness Resistance
Si ₃ N FOUR– SiC composites show exceptional mechanical efficiency compared to monolithic ceramics, with flexural toughness surpassing 800 MPa and fracture toughness values reaching 7– 9 MPa · m ¹/ TWO.
The reinforcing effect of SiC particles hinders dislocation movement and fracture proliferation, while the elongated Si six N ₄ grains remain to offer toughening with pull-out and linking devices.
This dual-toughening strategy causes a product very resistant to effect, thermal biking, and mechanical exhaustion– critical for revolving elements and architectural components in aerospace and power systems.
Creep resistance remains superb up to 1300 ° C, credited to the security of the covalent network and reduced grain limit gliding when amorphous phases are reduced.
Firmness worths usually vary from 16 to 19 Grade point average, providing excellent wear and erosion resistance in abrasive atmospheres such as sand-laden flows or sliding contacts.
3.2 Thermal Monitoring and Ecological Longevity
The enhancement of SiC substantially elevates the thermal conductivity of the composite, frequently increasing that of pure Si ₃ N FOUR (which varies from 15– 30 W/(m · K) )to 40– 60 W/(m · K) depending on SiC material and microstructure.
This improved warm transfer capacity enables much more effective thermal monitoring in elements subjected to extreme localized home heating, such as burning linings or plasma-facing parts.
The composite keeps dimensional security under high thermal gradients, resisting spallation and splitting because of matched thermal expansion and high thermal shock specification (R-value).
Oxidation resistance is an additional vital benefit; SiC forms a protective silica (SiO ₂) layer upon direct exposure to oxygen at elevated temperature levels, which better densifies and seals surface area defects.
This passive layer protects both SiC and Si ₃ N FOUR (which additionally oxidizes to SiO ₂ and N TWO), making certain long-lasting sturdiness in air, heavy steam, or burning atmospheres.
4. Applications and Future Technical Trajectories
4.1 Aerospace, Energy, and Industrial Equipment
Si ₃ N FOUR– SiC composites are significantly released in next-generation gas turbines, where they make it possible for greater running temperature levels, enhanced gas effectiveness, and lowered air conditioning demands.
Components such as turbine blades, combustor linings, and nozzle guide vanes benefit from the material’s ability to hold up against thermal biking and mechanical loading without substantial deterioration.
In nuclear reactors, especially high-temperature gas-cooled activators (HTGRs), these composites work as fuel cladding or structural supports because of their neutron irradiation resistance and fission product retention ability.
In industrial settings, they are utilized in molten steel handling, kiln furnishings, and wear-resistant nozzles and bearings, where traditional steels would certainly fall short too soon.
Their lightweight nature (thickness ~ 3.2 g/cm FIVE) likewise makes them attractive for aerospace propulsion and hypersonic automobile parts subject to aerothermal home heating.
4.2 Advanced Production and Multifunctional Assimilation
Arising research focuses on creating functionally rated Si three N FOUR– SiC structures, where composition varies spatially to enhance thermal, mechanical, or electromagnetic residential or commercial properties throughout a solitary component.
Hybrid systems including CMC (ceramic matrix composite) styles with fiber support (e.g., SiC_f/ SiC– Si Six N ₄) press the borders of damages resistance and strain-to-failure.
Additive manufacturing of these compounds enables topology-optimized warmth exchangers, microreactors, and regenerative air conditioning channels with inner lattice structures unachievable using machining.
Moreover, their inherent dielectric residential or commercial properties and thermal stability make them prospects for radar-transparent radomes and antenna windows in high-speed platforms.
As demands grow for materials that perform dependably under extreme thermomechanical tons, Si ₃ N FOUR– SiC composites stand for an essential innovation in ceramic design, combining robustness with performance in a single, lasting system.
In conclusion, silicon nitride– silicon carbide composite porcelains exemplify the power of materials-by-design, leveraging the toughness of 2 innovative porcelains to create a hybrid system efficient in thriving in the most extreme functional atmospheres.
Their continued development will play a central duty ahead of time clean energy, aerospace, and industrial innovations in the 21st century.
