Bearings are often called the “joints of sector.” Obtaining the choice right straight affects your equipment’s reliability, service life, and maintenance expenses. Numerous bearing failings do not originate from poor quality– they come from wrong selections. Points like lots estimation errors, neglecting rate limitations, or selecting the wrong lubrication approach. These little blunders can trigger tools to damage down early in its life span. This overview strolls you with the entire choice process, giving engineers and procurement specialists a clear path from evaluating working problems to confirming the appropriate bearing design.
Component One: What You Required to Know Before Starting
Before you open up any bearing catalog, ask on your own one question: What exactly does this maker require the bearing to do? The response hinges on five key locations:
1. Lots Qualities
Tons is the top factor in bearing option. You need to figure out 3 things:
Direction: Is it radial load (perpendicular to the shaft), axial lots (parallel to the shaft), or a combination of both?
Dimension: Is it light, moderate, or heavy? Any type of influence lots?
Nature: Is the lots consistent or changing? Just how often do effect tons happen and how solid are they?
Take a belt conveyor for instance. The bearings at the drive end take on radial loads from belt tension, the weight of the belt and rollers, plus the shaft assembly. When computing, you have to think about various operating conditions– startup, typical running, stopping– and utilize the worst-case scenario for your design.
2. Speed Problems

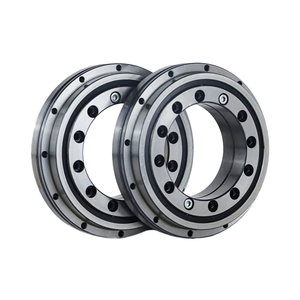

(bearings for steel mill)
Rate is another crucial factor influencing bearing life. According to tiredness life concept, bearing life has an inverted partnership with speed. For variable rate problems, you require to compute the equivalent speed. Take a rotating kiln support roller– its rate could range from 0.5 to 2.5 r/min. You ‘d need to weight the running time at each rate to get an equal value.
One thing to watch out for: recognizing only the optimum rate can ruin your lubrication technique. The lubricating substance you pick based upon full throttle could not form an appropriate oil film at reduced rates. Also, if your device has long idle periods, you ought to discuss that– otherwise nearby devices vibrations can cause incorrect brinelling damage.
3. Required Life Span
Birthing life span is typically revealed as L10h (the variety of hours that 90% of a bearing group will certainly get to prior to tiredness spalling shows up). A typical error is going for an excessively lengthy life– when L10h exceeds 100,000 hours, the bearing size gets also large. It comes to be tougher to oil, torque rises, and it ends up being extra sensitive to minimal lots. In the end, it may fall short for factors apart from exhaustion.
4. Area Restraints
You should know your available room limits from the start– shaft size array, real estate birthed dimension, axial size limits. Once you understand the matching shaft diameter and available space, you can promptly narrow down your options.
5. Running Accuracy Needs
The majority of applications do simply fine with typical accuracy bearings. But for high-speed or high-precision tools like machine device spindles, you’ll need P5, P4, and even higher qualities. Simply remember that choosing higher accuracy without a genuine need will drive up expenses substantially. Suit the grade to your actual demands.
Part Two: Matching Birthing Types to Working Issues
As soon as you have those parameters clear, the next step is to match the appropriate bearing kind based on load direction, dimension, rate, and misalignment tolerance.
1. Load Instructions: Radial, Axial, or Combined?
This is one of the most standard filter. It can direct you to a few prospects right now:

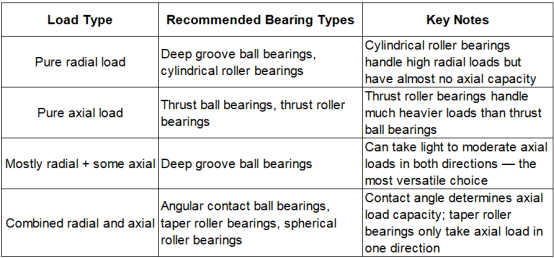

When the axial-to-radial load proportion (Fa/Fr) changes, your choice logic changes also. At reduced ratios, choose deep groove round bearings. At moderate proportions, make use of small-contact-angle angular contact bearings or taper roller bearings. At high proportions, you’ll need large-contact-angle bearings, or consider integrating a thrust bearing with a radial bearing.
( Radial)
2. Lots Size: Ball Bearings or Roller Bearings?
This is a timeless choice:
Light or moderate tons: Select round bearings (deep groove or angular contact). The factor get in touch with between balls and raceways provides reduced rubbing, making them appropriate for medium to high speeds.
Hefty or influence tons: You must utilize roller bearings (round, round, or taper). Line contact in between rollers and raceways supplies a lot greater tons capability and far better impact resistance.
3. Rate: Sphere Bearings for Broadband, Roller Bearings for Low
Normally speaking, sphere bearings have greater rate restrictions than roller bearings. For high-speed applications (over 1000 r/min), put sphere bearings at the top of your listing. When you require the highest possible rate with pure radial lots, open deep groove sphere bearings are your best bet. For integrated lots at broadband, angular call sphere bearings are the method to go.
Cylindrical roller bearings, taper roller bearings, and needle bearings have reasonably lower rate limitations. They’re generally suited for low-to-medium rate, heavy-load conditions.
4. Misalignment Tolerance: Do You Required Self-Aligning?
This often gets ignored however it’s extremely vital. You should think about self-aligning bearings when:
Birthing housing bores do not line up well
The shaft isn’t rigid adequate and flexes throughout procedure
The bearing span is lengthy and thermal growth triggers angular imbalance
You’re using separate split real estates (like pillow block bearings)
Spherical roller bearings and spherical round bearings have scooped outer ring raceways. This enables a particular quantity of angular misalignment in between the internal and outer rings without hazardous side anxiety. They can compensate for both vibrant deflection and static installment errors.
On the various other hand, cylindrical roller bearings, taper roller bearings, and needle bearings have really limited self-aligning capacity. Even a tiny angular imbalance can trigger stress and anxiety concentration at the roller finishes, bring about high edge stress that considerably reduce bearing life. Deep groove round bearings do have some self-aligning capability, however the allowable angle is tiny– surpassing it will decrease life also.
5. Axial Development Settlement: Fixed End or Floating End?
Long shafts expand and contract with temperature modifications during procedure. That implies you need to establish your bearing plan with one set end and one drifting end.
NU and N series round roller bearings have no flanges on the inner ring (or on one side). This allows the shaft relocation easily in the axial instructions relative to the housing– making them suitable as floating-end bearings. NJ and NUP series can provide axial positioning in one or both directions, so they work well as fixed-end bearings. This configuration is really common in transmissions and electrical motors.
Component Three: BMB Product Line at a Look

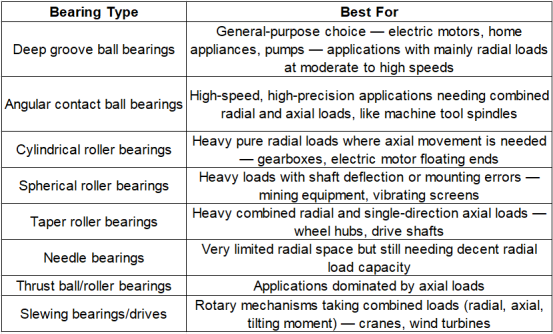

BMB offers a total series of industrial bearings, covering all the major types we’ve talked about. This quick recommendation table attaches the selection concepts over directly to certain product categories:
Part 4: Diving Deeper– Precision, Clearance, Lubrication, and Seals
( Axial)
1. Accuracy Grades
Criterion precision (P0) works for the huge bulk of general machinery. For precision equipment like device spindles or aerospace elements, you’ll require P5 or higher. Tighter precision suggests tighter dimensional tolerances and far better running precision– yet additionally greater costs.
2. Interior Clearance and Preload
Bearings require to preserve correct interior clearance after installment. Excessive clearance brings about vibration and sound. Too little, and thermal expansion can cause the bearing to confiscate. In special cases like equipment tool pins, preload (using unfavorable clearance) is utilized to improve system strength and rotational accuracy.
3. Lube Option
Lubrication is a make-or-break factor for birthing life. Oil helps most moderate-speed and temperature level applications– it’s basic to seal and can run maintenance-free for long periods. Oil (oil bath, oil mist, jet lubrication) is much better for high-speed or high-temperature conditions, as it dissipates warm better. When picking a lubricating substance, examine the rate variable (ndm value). Do not simply select based on optimum speed– the oil you select may not create an appropriate movie at reduced speeds.
4. Securing Program
Choose the seal type based upon your environment: call seals keep dirt out well yet include some rubbing; non-contact seals work for high speeds yet provide less security against contamination; open bearings rely upon exterior securing systems.
Part Five: Life Calculation– From Theory to Method
( or Combined Basic Filter Table)
At the end of the day, you need to verify whether your selected bearing will really satisfy the anticipated service life. This is where basic ranking life computation is available in.
The fundamental score life L10 formula (ISO 281 standard):
For sphere bearings: L10 = (C/P) THREE × (10 SIX/ 60n) hours
For roller bearings: L10 = (C/P)^(10/3) × (10 ⁶/ 60n) hours
Where:
C: fundamental dynamic tons ranking (kN)– located in the item catalog
P: equal vibrant load (kN)– takes both radial and axial lots into account
The equivalent vibrant tons P is determined as: P = X · Fr + Y · Fa
Fr is the radial load, Fa is the axial tons
X and Y are coefficients that depend on birthing type and the Fa/Fr proportion– inspect the catalog for these worths
For even more requiring conditions, you can apply modification variables: Ln = a1 × a2 × a3 × L10
a1 is the dependability aspect (a1 = 1 for 90% integrity, about 0.21 for 99%)
a2 is the product factor (high-grade bearing steel can get to 1.5 to 2)
a3 is the operating conditions variable (great lubrication and cleanliness can give 2 to 3)
With this calculation, engineers can confirm that the picked bearing fulfills the necessary service life. It additionally assists compare numerous alternatives and make data-driven choices.
This guide has actually walked you with the full option path– from assessing working conditions, to matching the best bearing kind, to validating life span. Comprehending and using this method will certainly aid you make accurate, efficient, and affordable bearing choices throughout a wide range of industrial applications.
