1. Product Structure and Architectural Layout
1.1 Glass Chemistry and Spherical Architecture

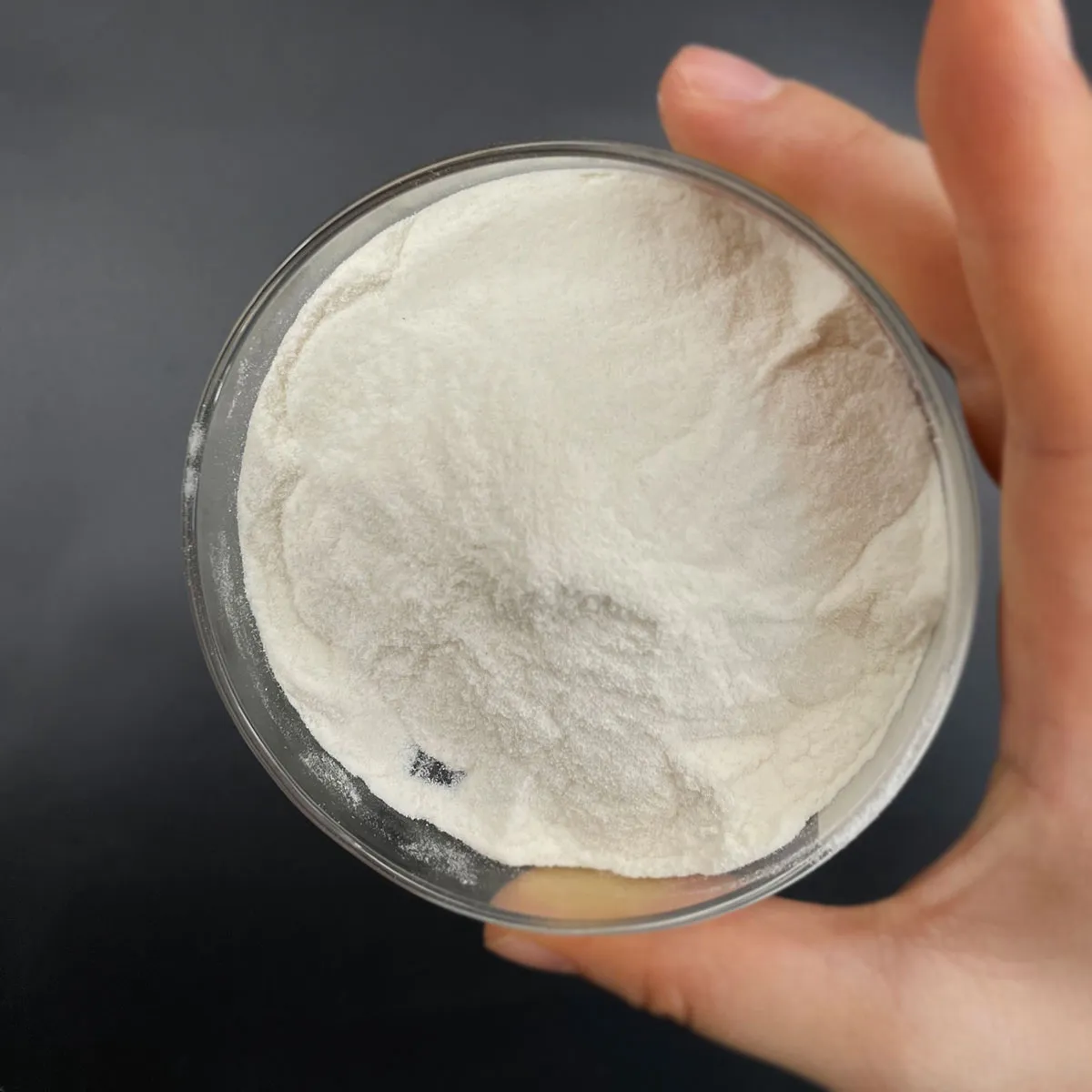

(Hollow glass microspheres)
Hollow glass microspheres (HGMs) are microscopic, round particles made up of alkali borosilicate or soda-lime glass, commonly varying from 10 to 300 micrometers in size, with wall densities in between 0.5 and 2 micrometers.
Their specifying function is a closed-cell, hollow inside that imparts ultra-low thickness– commonly listed below 0.2 g/cm three for uncrushed spheres– while preserving a smooth, defect-free surface area crucial for flowability and composite combination.
The glass structure is crafted to balance mechanical stamina, thermal resistance, and chemical resilience; borosilicate-based microspheres provide exceptional thermal shock resistance and lower alkali web content, decreasing sensitivity in cementitious or polymer matrices.
The hollow structure is developed with a controlled development process throughout production, where precursor glass particles including an unpredictable blowing representative (such as carbonate or sulfate compounds) are heated in a heating system.
As the glass softens, inner gas generation creates interior stress, causing the fragment to inflate into a perfect ball prior to fast cooling solidifies the structure.
This accurate control over dimension, wall density, and sphericity allows predictable performance in high-stress engineering environments.
1.2 Thickness, Toughness, and Failing Mechanisms
An essential performance statistics for HGMs is the compressive strength-to-density ratio, which establishes their capability to endure handling and solution lots without fracturing.
Industrial qualities are identified by their isostatic crush strength, ranging from low-strength spheres (~ 3,000 psi) suitable for finishes and low-pressure molding, to high-strength versions exceeding 15,000 psi used in deep-sea buoyancy components and oil well cementing.
Failing usually happens through elastic twisting rather than fragile fracture, a behavior regulated by thin-shell technicians and affected by surface area problems, wall harmony, and inner stress.
As soon as fractured, the microsphere sheds its protecting and lightweight properties, highlighting the requirement for cautious handling and matrix compatibility in composite design.
Regardless of their fragility under point loads, the spherical geometry disperses anxiety equally, allowing HGMs to hold up against considerable hydrostatic pressure in applications such as subsea syntactic foams.
( Hollow glass microspheres)
2. Manufacturing and Quality Assurance Processes
2.1 Production Strategies and Scalability
HGMs are created industrially making use of flame spheroidization or rotating kiln expansion, both involving high-temperature handling of raw glass powders or preformed beads.
In fire spheroidization, fine glass powder is infused right into a high-temperature flame, where surface tension draws liquified beads right into rounds while interior gases expand them right into hollow frameworks.
Rotating kiln methods entail feeding precursor beads right into a rotating heating system, allowing continuous, large-scale production with tight control over bit dimension circulation.
Post-processing steps such as sieving, air category, and surface area therapy guarantee consistent particle dimension and compatibility with target matrices.
Advanced manufacturing now consists of surface functionalization with silane coupling agents to enhance attachment to polymer resins, minimizing interfacial slippage and boosting composite mechanical buildings.
2.2 Characterization and Performance Metrics
Quality control for HGMs depends on a suite of logical techniques to confirm vital parameters.
Laser diffraction and scanning electron microscopy (SEM) analyze particle size circulation and morphology, while helium pycnometry gauges true fragment thickness.
Crush toughness is examined using hydrostatic pressure tests or single-particle compression in nanoindentation systems.
Mass and touched thickness measurements notify handling and blending actions, crucial for industrial formula.
Thermogravimetric evaluation (TGA) and differential scanning calorimetry (DSC) evaluate thermal security, with many HGMs continuing to be stable approximately 600– 800 ° C, relying on make-up.
These standard tests guarantee batch-to-batch uniformity and enable reliable performance forecast in end-use applications.
3. Useful Residences and Multiscale Impacts
3.1 Thickness Reduction and Rheological Actions
The main function of HGMs is to minimize the thickness of composite products without dramatically compromising mechanical stability.
By replacing solid material or steel with air-filled rounds, formulators attain weight financial savings of 20– 50% in polymer composites, adhesives, and cement systems.
This lightweighting is essential in aerospace, marine, and automobile industries, where minimized mass equates to enhanced gas effectiveness and payload capability.
In liquid systems, HGMs affect rheology; their spherical shape decreases thickness compared to irregular fillers, boosting circulation and moldability, however high loadings can enhance thixotropy as a result of bit communications.
Proper diffusion is necessary to stop jumble and make certain consistent homes throughout the matrix.
3.2 Thermal and Acoustic Insulation Properties
The entrapped air within HGMs offers superb thermal insulation, with efficient thermal conductivity values as low as 0.04– 0.08 W/(m · K), relying on volume portion and matrix conductivity.
This makes them valuable in insulating finishings, syntactic foams for subsea pipes, and fireproof building products.
The closed-cell structure additionally hinders convective warmth transfer, enhancing performance over open-cell foams.
Similarly, the impedance mismatch in between glass and air scatters acoustic waves, giving modest acoustic damping in noise-control applications such as engine rooms and marine hulls.
While not as efficient as committed acoustic foams, their double duty as lightweight fillers and second dampers adds practical value.
4. Industrial and Arising Applications
4.1 Deep-Sea Engineering and Oil & Gas Solutions
Among one of the most requiring applications of HGMs remains in syntactic foams for deep-ocean buoyancy modules, where they are embedded in epoxy or plastic ester matrices to develop compounds that resist extreme hydrostatic pressure.
These materials maintain favorable buoyancy at midsts exceeding 6,000 meters, making it possible for self-governing undersea lorries (AUVs), subsea sensors, and offshore boring devices to operate without heavy flotation protection containers.
In oil well sealing, HGMs are added to seal slurries to reduce density and prevent fracturing of weak formations, while additionally improving thermal insulation in high-temperature wells.
Their chemical inertness guarantees lasting stability in saline and acidic downhole atmospheres.
4.2 Aerospace, Automotive, and Lasting Technologies
In aerospace, HGMs are used in radar domes, interior panels, and satellite components to decrease weight without sacrificing dimensional stability.
Automotive producers incorporate them right into body panels, underbody coverings, and battery enclosures for electric lorries to enhance power performance and lower discharges.
Emerging uses consist of 3D printing of light-weight frameworks, where HGM-filled resins allow complicated, low-mass parts for drones and robotics.
In lasting building, HGMs enhance the insulating homes of light-weight concrete and plasters, adding to energy-efficient buildings.
Recycled HGMs from industrial waste streams are additionally being checked out to enhance the sustainability of composite products.
Hollow glass microspheres exemplify the power of microstructural design to change mass material buildings.
By incorporating low density, thermal stability, and processability, they enable technologies throughout marine, energy, transport, and ecological industries.
As material scientific research advancements, HGMs will remain to play a vital function in the development of high-performance, lightweight products for future technologies.
