1. Product Attributes and Structural Layout
1.1 Make-up and Crystalline Phases of Alumina

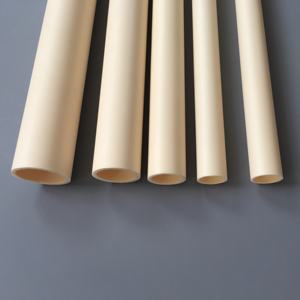

( Alumina Ceramic Tubes)
Alumina (Al ₂ O TWO) ceramic tubes are primarily fabricated from high-purity light weight aluminum oxide, with purity levels commonly varying from 90% to 99.8%, depending on the designated application.
The dominant crystalline stage in completely dense, high-temperature sintered tubes is α-alumina (corundum), which exhibits a trigonal crystal framework and remarkable thermodynamic stability.
This stage transition from forerunner hydroxides (e.g., boehmite or gibbsite) to α-alumina takes place over 1100 ° C and causes a dense, interlocking microstructure that supplies superior mechanical stamina and chemical resistance.
Higher purity qualities (≥ 99.5%) take full advantage of solidity, wear resistance, and dielectric performance, while lower-purity solutions may incorporate additional phases like mullite or glazed grain border stages to reduce cost or dressmaker thermal development.
The capacity to control grain size, porosity, and phase make-up throughout handling enables engineers to fine-tune alumina tubes for specific practical requirements throughout diverse industrial domains.
1.2 Mechanical, Thermal, and Electric Quality
Alumina ceramic tubes display an unique mix of physical buildings that make them essential sought after design atmospheres.
With a Vickers solidity going beyond 1500 HV, they are very immune to abrasion and erosion, exceeding most metals and polymers in wear-prone systems.
Their compressive strength can reach 2000 MPa, allowing structural use under high mechanical tons, while flexural toughness usually ranges from 300 to 500 MPa, depending on density and surface area finish.
Thermally, alumina preserves security approximately 1700 ° C in oxidizing atmospheres, with a low coefficient of thermal development (~ 8 ppm/K), contributing to excellent thermal shock resistance when effectively made.
Although its thermal conductivity (~ 30 W/(m · K)) is modest contrasted to metals or light weight aluminum nitride, it is sufficient for numerous high-temperature applications where electrical insulation and architectural stability are prioritized.
Electrically, alumina is an outstanding insulator with quantity resistivity > 10 ¹⁴ Ω · centimeters and high dielectric strength (> 15 kV/mm), making it ideal for electrical feedthroughs, sensor real estates, and high-voltage insulation.
( Alumina Ceramic Tubes)
2. Production Processes and Dimensional Control
2.1 Forming and Developing Strategies
The production of alumina ceramic tubes includes sophisticated forming methods customized to attain specific measurements, wall thickness harmony, and surface quality.
Typical strategies consist of extrusion, isostatic pushing, and slip spreading, each suited to various dimension arrays and efficiency requirements.
Extrusion is widely utilized for long, straight tubes with consistent cross-sections, where a plasticized alumina paste is forced through a die and cut to length prior to drying and sintering.
For high-precision or thin-walled tubes, cool isostatic pushing (CIP) uses consistent pressure from all instructions to portable eco-friendly bodies, minimizing distortion and enhancing density homogeneity.
Slide casting, including the deposition of a colloidal alumina suspension (slip) onto a permeable plaster mold and mildew, is ideal for complex or large-diameter geometries with variable wall thickness.
After developing, tubes go through cautious drying to stop splitting, complied with by binder burnout and high-temperature sintering (1500– 1650 ° C )to attain full densification and dimensional security.
2.2 Ending Up and Quality Control
Post-sintering operations such as centerless grinding, lapping, and polishing are employed to achieve tight tolerances, smooth surface area coatings, and accurate internal and external diameters.
Tolerances as tight as ± 0.01 mm are possible for vital applications in semiconductor handling or analytical instrumentation.
Surface roughness can be reduced to Ra < 0.1 µm, reducing bit trapping and boosting compatibility with ultra-high vacuum (UHV) or cleanroom environments.
Non-destructive testing approaches– including ultrasonic inspection, X-ray radiography, and dye penetrant testing– make certain architectural stability and lack of fractures or gaps.
Dimensional width making use of coordinate gauging devices (CMM) or laser scanning confirms compliance with style specifications, specifically for customized or high-volume production runs.
3. Useful Efficiency in Harsh Environments
3.1 Resistance to Thermal and Chemical Deterioration
One of one of the most compelling benefits of alumina ceramic tubes is their capability to hold up against severe thermal and chemical problems where metals and polymers fail.
They continue to be dimensionally secure and mechanically robust in continuous service at temperatures over 1500 ° C, making them suitable for heater liners, thermocouple security sheaths, and radiant heating system tubes.
Their inertness to thaw metals (e.g., light weight aluminum, zinc, and non-ferrous alloys), molten salts, and numerous acids (except hydrofluoric and hot phosphoric acid) allows use in metallurgical and chemical handling equipment.
In oxidizing and lowering atmospheres, alumina does not break down or militarize undesirable reactions, preserving process pureness in semiconductor and glass production.
This chemical inertness also avoids contamination in high-purity fluid dealing with systems, consisting of those made use of in pharmaceutical and food processing industries.
3.2 Electrical Insulation and Plasma Resistance
In electric and plasma atmospheres, alumina tubes serve as insulating obstacles that keep circuit stability under high voltage and raised temperature.
They are utilized in high-intensity discharge (HID) lamps, where they include ionized gases at temperature levels exceeding 1000 ° C while standing up to electric potentials of numerous kilovolts.
In plasma etching and deposition systems, alumina tubes work as dielectric home windows or gas distribution elements, standing up to ion bombardment and thermal cycling without splitting or outgassing.
Their low dielectric loss and high arc resistance avoid electric tracking and break down, making sure long life span in switchgear and power transmission parts.
These properties are crucial in preserving process stability and tools reliability in advanced production and power systems.
4. Industrial and Arising Applications
4.1 High-Temperature and Industrial Processing Systems
Alumina ceramic tubes are essential to a wide variety of industrial procedures that require toughness under extreme problems.
In thermal handling, they work as safety sheaths for thermocouples and burner in kilns, heating systems, and warm therapy tools, securing delicate parts from destructive environments and mechanical wear.
In liquid handling, they move hostile chemicals, slurries, and high-temperature gases in petrochemical refineries, desalination plants, and waste incineration systems.
Their resistance to thermal shock allows quick home heating and cooling down cycles without failure, a vital benefit in cyclic industrial operations.
In glass production, alumina tubes assist molten glass circulations and assistance creating devices, withstanding erosion from viscous, high-temperature melts.
4.2 Advanced Technologies and Future Combination
Beyond standard industrial uses, alumina tubes are discovering brand-new functions in advanced innovations.
In semiconductor manufacture, ultra-pure alumina tubes are utilized in chemical vapor deposition (CVD) activators and ion implantation systems, where particle generation and metallic contamination should be reduced.
In clinical gadgets, biocompatible alumina tubes work as shielding elements in medical tools, oral implants, and diagnostic sensors.
Study is exploring functionalized alumina tubes with embedded sensors or conductive traces for wise structural surveillance in aerospace and energy systems.
Additive production (3D printing) of alumina is becoming a technique to generate complicated tube geometries with inner networks or rated compositions, allowing next-generation warm exchangers and microreactors.
As industries press towards greater effectiveness, cleaner processes, and higher integrity, alumina ceramic tubes continue to evolve as enabling parts in the facilities of modern innovation.
In summary, alumina ceramic tubes represent a fully grown yet dynamically advancing course of engineered materials, integrating exceptional thermal, mechanical, and electrical performance in a solitary inorganic avenue.
Their flexibility throughout severe environments guarantees their ongoing significance in both established industrial systems and arising sophisticated applications.
