1. The Nanoscale Architecture and Material Science of Aerogels
1.1 Genesis and Basic Structure of Aerogel Materials

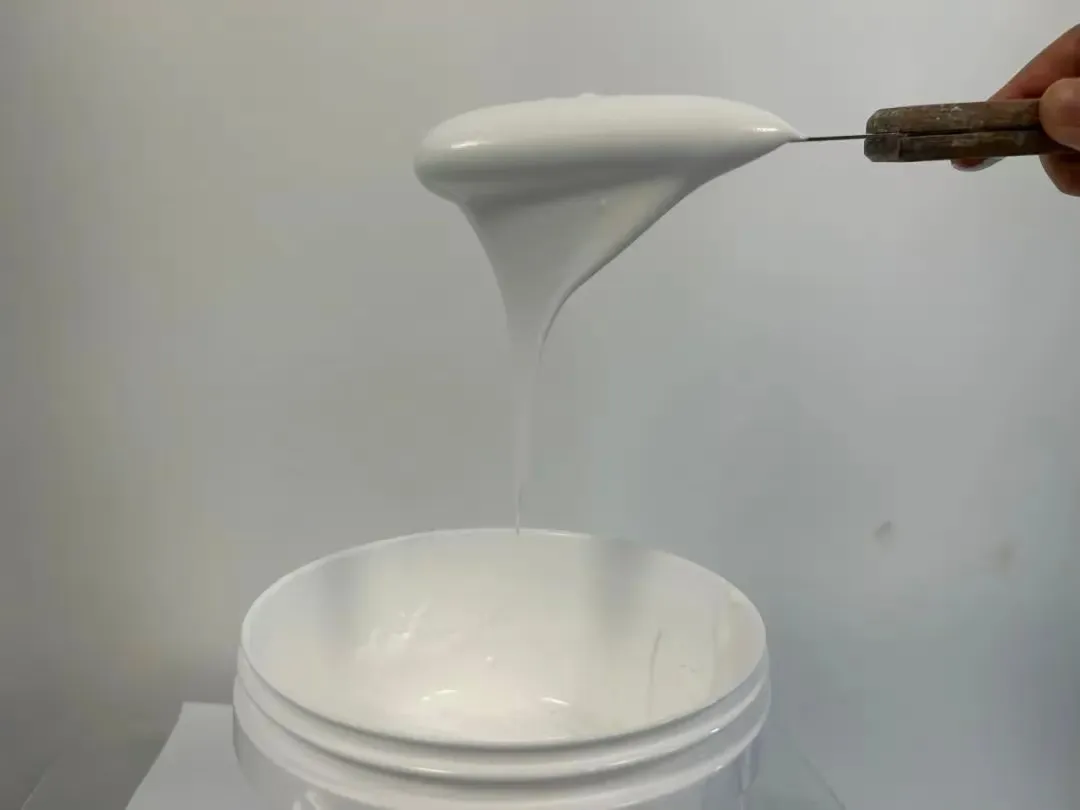

(Aerogel Insulation Coatings)
Aerogel insulation layers represent a transformative advancement in thermal monitoring technology, rooted in the unique nanostructure of aerogels– ultra-lightweight, permeable materials derived from gels in which the liquid part is changed with gas without falling down the solid network.
First established in the 1930s by Samuel Kistler, aerogels continued to be greatly laboratory curiosities for decades due to frailty and high production expenses.
However, recent innovations in sol-gel chemistry and drying out methods have enabled the assimilation of aerogel particles into flexible, sprayable, and brushable coating formulations, opening their capacity for widespread commercial application.
The core of aerogel’s phenomenal protecting capability hinges on its nanoscale permeable framework: usually made up of silica (SiO TWO), the material shows porosity exceeding 90%, with pore dimensions mainly in the 2– 50 nm array– well listed below the mean complimentary course of air particles (~ 70 nm at ambient problems).
This nanoconfinement considerably minimizes aeriform thermal conduction, as air particles can not efficiently move kinetic energy through accidents within such confined rooms.
Concurrently, the solid silica network is engineered to be highly tortuous and discontinuous, lessening conductive warmth transfer through the strong phase.
The outcome is a product with one of the most affordable thermal conductivities of any type of solid recognized– normally in between 0.012 and 0.018 W/m · K at room temperature– surpassing conventional insulation products like mineral woollen, polyurethane foam, or expanded polystyrene.
1.2 Advancement from Monolithic Aerogels to Composite Coatings
Early aerogels were created as fragile, monolithic blocks, restricting their usage to specific niche aerospace and scientific applications.
The shift toward composite aerogel insulation finishes has actually been driven by the need for flexible, conformal, and scalable thermal barriers that can be related to complex geometries such as pipes, shutoffs, and irregular devices surfaces.
Modern aerogel finishings integrate finely grated aerogel granules (usually 1– 10 µm in diameter) spread within polymeric binders such as polymers, silicones, or epoxies.

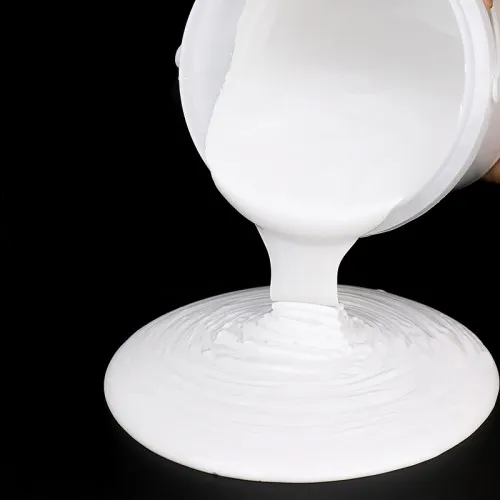

( Aerogel Insulation Coatings)
These hybrid formulations preserve a lot of the intrinsic thermal performance of pure aerogels while getting mechanical robustness, adhesion, and climate resistance.
The binder phase, while slightly enhancing thermal conductivity, gives crucial cohesion and enables application using conventional commercial techniques including spraying, rolling, or dipping.
Most importantly, the volume fraction of aerogel particles is optimized to stabilize insulation efficiency with movie integrity– normally varying from 40% to 70% by volume in high-performance formulas.
This composite technique maintains the Knudsen impact (the reductions of gas-phase conduction in nanopores) while enabling tunable residential properties such as adaptability, water repellency, and fire resistance.
2. Thermal Performance and Multimodal Warm Transfer Reductions
2.1 Mechanisms of Thermal Insulation at the Nanoscale
Aerogel insulation coatings attain their premium performance by at the same time subduing all three settings of warm transfer: transmission, convection, and radiation.
Conductive warm transfer is minimized through the mix of low solid-phase connection and the nanoporous structure that hampers gas molecule motion.
Due to the fact that the aerogel network consists of extremely thin, interconnected silica hairs (often just a few nanometers in size), the path for phonon transportation (heat-carrying latticework vibrations) is very limited.
This architectural style effectively decouples adjacent areas of the finish, decreasing thermal bridging.
Convective heat transfer is naturally lacking within the nanopores due to the inability of air to develop convection currents in such restricted spaces.
Even at macroscopic scales, effectively applied aerogel finishings eliminate air gaps and convective loops that plague typical insulation systems, specifically in vertical or overhead installments.
Radiative heat transfer, which comes to be significant at elevated temperatures (> 100 ° C), is mitigated through the incorporation of infrared opacifiers such as carbon black, titanium dioxide, or ceramic pigments.
These additives boost the finishing’s opacity to infrared radiation, scattering and soaking up thermal photons before they can pass through the finish thickness.
The synergy of these mechanisms leads to a product that provides equivalent insulation performance at a portion of the thickness of traditional products– commonly accomplishing R-values (thermal resistance) a number of times higher each thickness.
2.2 Performance Across Temperature and Environmental Conditions
One of the most engaging benefits of aerogel insulation layers is their regular performance throughout a wide temperature range, normally varying from cryogenic temperatures (-200 ° C) to over 600 ° C, depending on the binder system utilized.
At low temperature levels, such as in LNG pipelines or refrigeration systems, aerogel finishings avoid condensation and reduce heat ingress extra effectively than foam-based options.
At heats, particularly in commercial procedure tools, exhaust systems, or power generation centers, they shield underlying substrates from thermal degradation while minimizing power loss.
Unlike organic foams that might decompose or char, silica-based aerogel layers continue to be dimensionally steady and non-combustible, adding to passive fire protection methods.
Additionally, their low water absorption and hydrophobic surface treatments (commonly accomplished by means of silane functionalization) protect against performance degradation in humid or damp atmospheres– an usual failing mode for fibrous insulation.
3. Solution Approaches and Practical Integration in Coatings
3.1 Binder Choice and Mechanical Residential Property Engineering
The selection of binder in aerogel insulation coverings is crucial to stabilizing thermal efficiency with resilience and application convenience.
Silicone-based binders supply exceptional high-temperature security and UV resistance, making them appropriate for exterior and commercial applications.
Acrylic binders give good bond to steels and concrete, in addition to convenience of application and low VOC emissions, perfect for constructing envelopes and a/c systems.
Epoxy-modified solutions boost chemical resistance and mechanical toughness, advantageous in aquatic or corrosive settings.
Formulators likewise include rheology modifiers, dispersants, and cross-linking agents to make certain consistent fragment distribution, prevent clearing up, and improve film development.
Adaptability is very carefully tuned to prevent cracking throughout thermal biking or substratum deformation, specifically on vibrant frameworks like growth joints or shaking equipment.
3.2 Multifunctional Enhancements and Smart Coating Potential
Past thermal insulation, modern aerogel finishes are being crafted with additional performances.
Some formulations consist of corrosion-inhibiting pigments or self-healing agents that extend the lifespan of metal substrates.
Others integrate phase-change materials (PCMs) within the matrix to supply thermal energy storage, smoothing temperature changes in structures or electronic rooms.
Emerging research discovers the assimilation of conductive nanomaterials (e.g., carbon nanotubes) to make it possible for in-situ surveillance of covering honesty or temperature level circulation– paving the way for “wise” thermal management systems.
These multifunctional capabilities position aerogel coverings not just as easy insulators yet as energetic parts in intelligent facilities and energy-efficient systems.
4. Industrial and Commercial Applications Driving Market Fostering
4.1 Power Performance in Structure and Industrial Sectors
Aerogel insulation coverings are progressively deployed in industrial structures, refineries, and nuclear power plant to minimize power usage and carbon emissions.
Applied to vapor lines, central heating boilers, and heat exchangers, they significantly reduced warm loss, enhancing system efficiency and decreasing gas demand.
In retrofit situations, their thin account allows insulation to be included without major structural adjustments, protecting room and minimizing downtime.
In residential and industrial building and construction, aerogel-enhanced paints and plasters are utilized on wall surfaces, roofing systems, and windows to improve thermal comfort and reduce a/c lots.
4.2 Niche and High-Performance Applications
The aerospace, auto, and electronic devices markets take advantage of aerogel finishes for weight-sensitive and space-constrained thermal monitoring.
In electric lorries, they safeguard battery packs from thermal runaway and outside warm sources.
In electronics, ultra-thin aerogel layers protect high-power elements and avoid hotspots.
Their usage in cryogenic storage, area habitats, and deep-sea tools emphasizes their integrity in extreme environments.
As producing ranges and costs decline, aerogel insulation layers are positioned to end up being a keystone of next-generation lasting and durable facilities.
